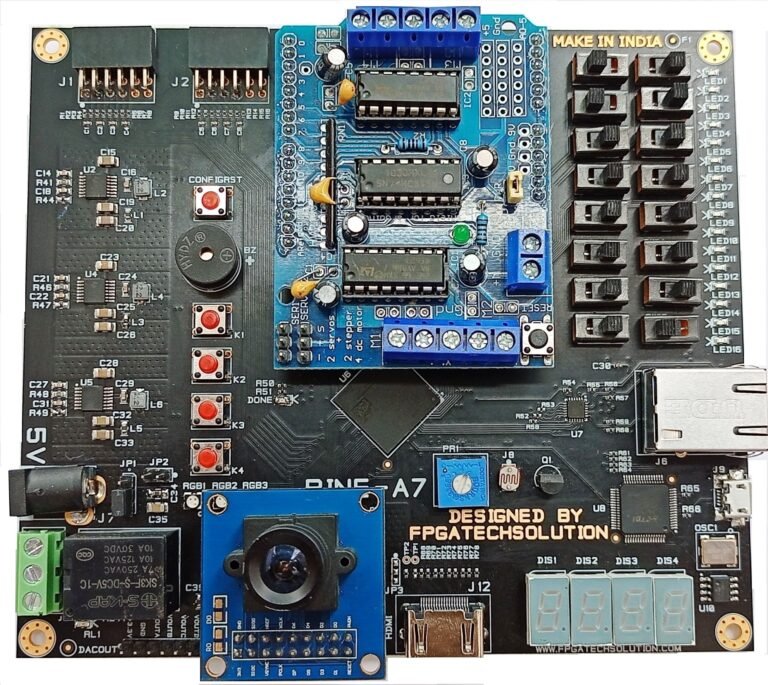

Micro-ARTIX7

VLSI Development Board (Spartan 7)

Micro-ARTIX7 board is design and developed low cost & easy to use FPGA Development board with Xilinx Artix-7 FPGA . Micro-ARTIX7 board is specially designed for experimenting and learning system design with FPGAs. This development board designed with Xilinx XC7A35T-1CSG324C FPGA with maximum 40 user IOs. The USB 2.0 interface provides fast and easy configuration download to FPGA and on-board SPI flash.

DELIVERABLES

  • Micro-ARTIX7 development board
  • 5V/1.5A SMPS power supply adapter
  • USB A-B cable
  • User manual
  • Source code to test Practicals

BOARD FEATURES

  • Based on Spartan-7 XC7A35T-1CSG324C FPGA
  • Oscillator 100MHz
  • Serial Flash (16MB)
  • DDR3 Memory – 2GB
  • 10/100Mbps Ethernet
  • OV7670 Camera
  • User Led’s – 16 no’s
  • Seven-segment display – 4 no’s
  • Three multipurpose RGB LED
  • HDMI Interface
  • Push Button switches – 4 no’s
  • Digital inputs (DIP Switches) – 16 no’s
  • Temperature Sensor (LM35)
  • LDR Sensor
  • Trim Pot for ADC
  • 8bit SPI DAC
  • 4 Pmod Ports (Support digilent pmod)
  • Buzzer
  • Relay Output
  • Arduino compatible connector
  • On-board USB to RS-232 converter
  • Wooden Box Enclosure

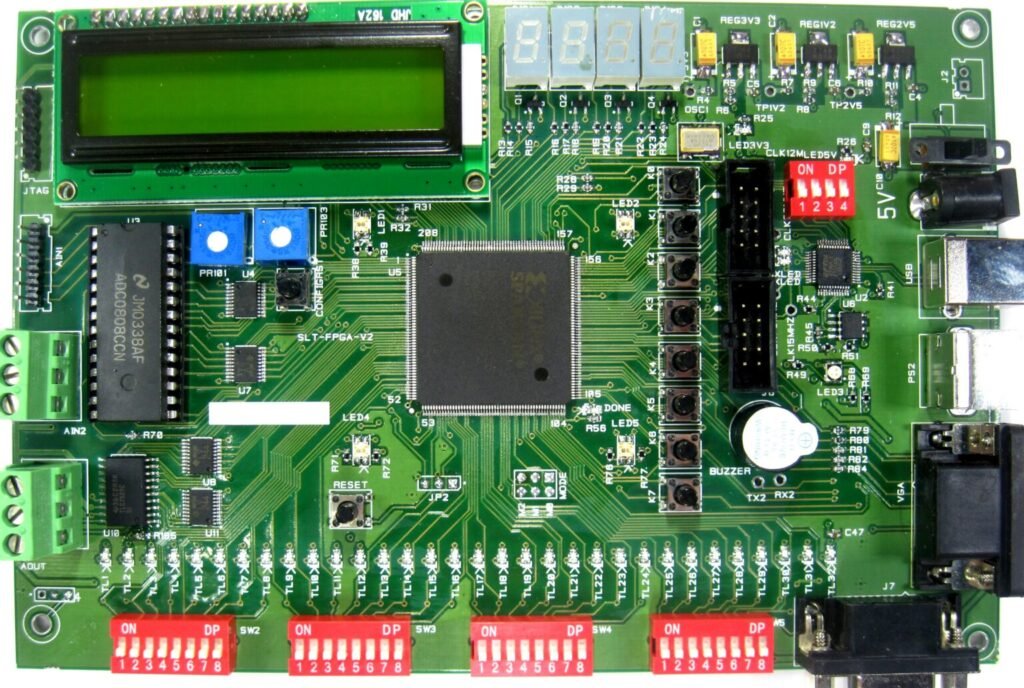

Micro-SP3E

VLSI Development Board (Spartan 3E)

Xilinx Spartan™-3E based VLSI Development Board (Micro-SP3E) is useful in developing your Spartan-3E
FPGA application. The board provides easy to use development platform for implementing digital designs.The board can be used to prototype commercial devices also.

DELIVERABLES

  • Micro-SP3E development board
  • 5V/1.5A SMPS power supply adapter
  • USB A-B cable
  • User manual
  • Source code to test Practicals

BOARD FEATURES

  • Based on Spartan-3E XC3S250E/ XC3S500E FPGA
  • Up to 172 user-I/O pins, 208-pin FBGA package
  • Over 5,000 logic cells
  • 2×16 Character LCD interface (8 Bit)
  • 4 No’s of Seven-segment display
  • Push Button switches – 8 no’s
  • RS-232 Serial Port
  • VGA Interface
  • PS/2 Interface
  • 12 MHz crystal oscillator clock source
  • 16 user input output pin
  • On-board one multipurpose RGB LED
  • On-board Buzzer
  • On-board ADC – 8 channel
  • On-board DAC – 2 channel
  • On-board Flash 2MB
  • On-board 4 multipurpose By color LED (can be used
  • Multiplexed 32 No’s of digital inputs (DIP Switch)and
  • 32 No’s of LED’s for Digital outputs
  • Onboard USB JTAG (Support Xilinx Impact)
  • Wooden Box Enclosure

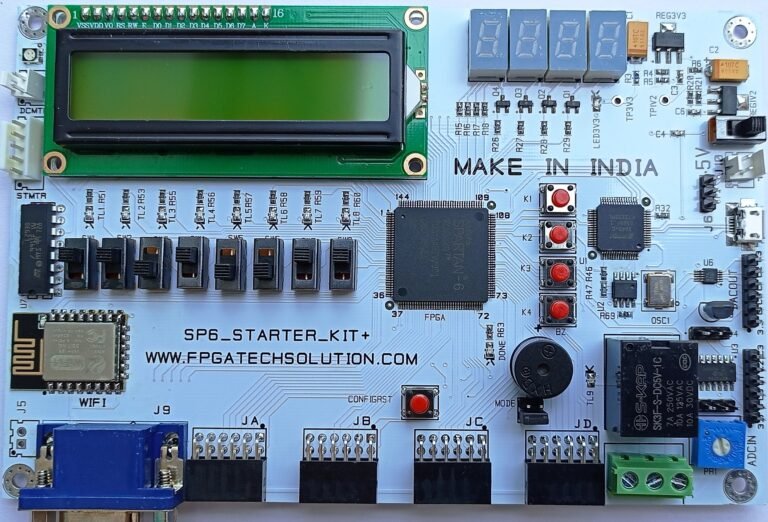

Micro-SP6

VLSI Starter Kit (Spartan 6)

Xilinx Spartan™ 6 based VLSI starter kit (Micro-SP6) is useful in developing your Spartan-6 FPGA application. The board provides easy to use development platform for implementing digital designs. The board can be used to prototype commercial devices also.

DELIVERABLES

  • Micro-SP6 Starter Kit
  • 5V/1.5A SMPS power supply adapter
  • USB A-B cable
  • User manual
  • Source code to test Practicals

BOARD FEATURES

  • Based on Spartan-6 XC6SLX9_ FPGA
  • Up to 102 user I/O Pins
  • 12MHz Oscillator
  • Flash – 4MB
  • ESP12F WiFi Interface
  • 2×16 Character LCD
  • User Led’s – 8 no’s
  • One multipurpose RGB LED
  • Seven-segment display – 4 no’s
  • VGA Interface
  • Digital inputs (DIP Switches) – 8 no’s
  • Push Button switches – 4 no’s
  • One Relay Output
  • Buzzer
  • Stepper/DC Motor Driver Interface
  • User GPIO Pins – 32 no’s
  • 8 bit SPI DAC Out
  • 10 bit SPI ADC In
  • On-board USB to RS-232 converter
  • Wooden Box Enclosure

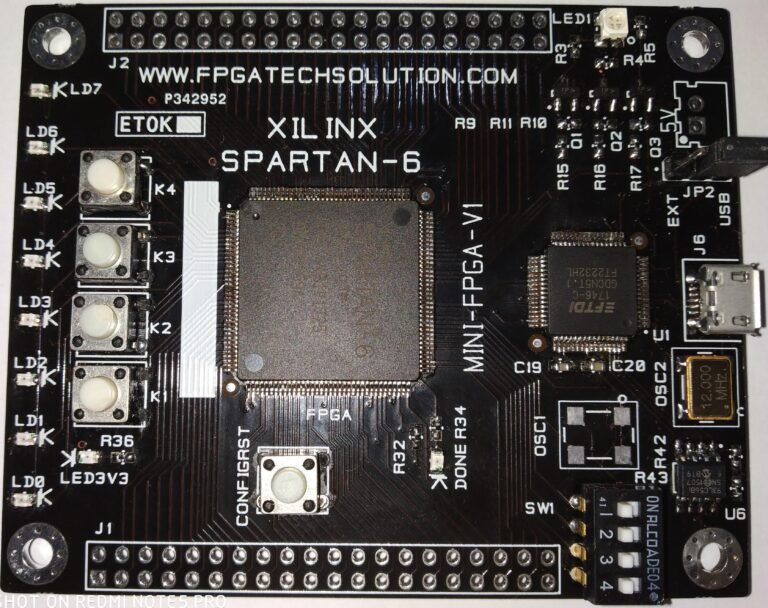

Micro-SP6Lite

VLSI Lite Kit (Spartan 6)

Xilinx Sparta 6 based VLSI Lite kit (Micro-SP6Lite) is low cost & easy to use FPGA Development board. Micro-SP6Lite is specially designed for experimenting and learning system design with FPGAs. This development board designed with Xilinx XC6SLX9 TQG144 FPGA with maximum 71 user IOs. The USB 2.0 interface provides fast and easy configuration download to FPGA and on-board SPI flash.

DELIVERABLES

  • Micro-SP6Lite Starter Kit
  • 5V/1.5A SMPS power supply adapter
  • USB A-B cable
  • User manual
  • Source code to test Practicals

BOARD FEATURES

  • Based on Spartan-6 XC6SLX9 FPGA
  • Up to 102 user I/O Pins
  • 12MHz Oscillator
  • Flash – 4MB
  • User Led’s – 8 no’s
  • One multipurpose RGB LED
  • Digital inputs (DIP Switches) – 4 no’s
  • Push Button switches – 4 no’s
  • On-board USB to RS-232 converter
  • On-board USB JTAG
  • Wooden Box Enclosure

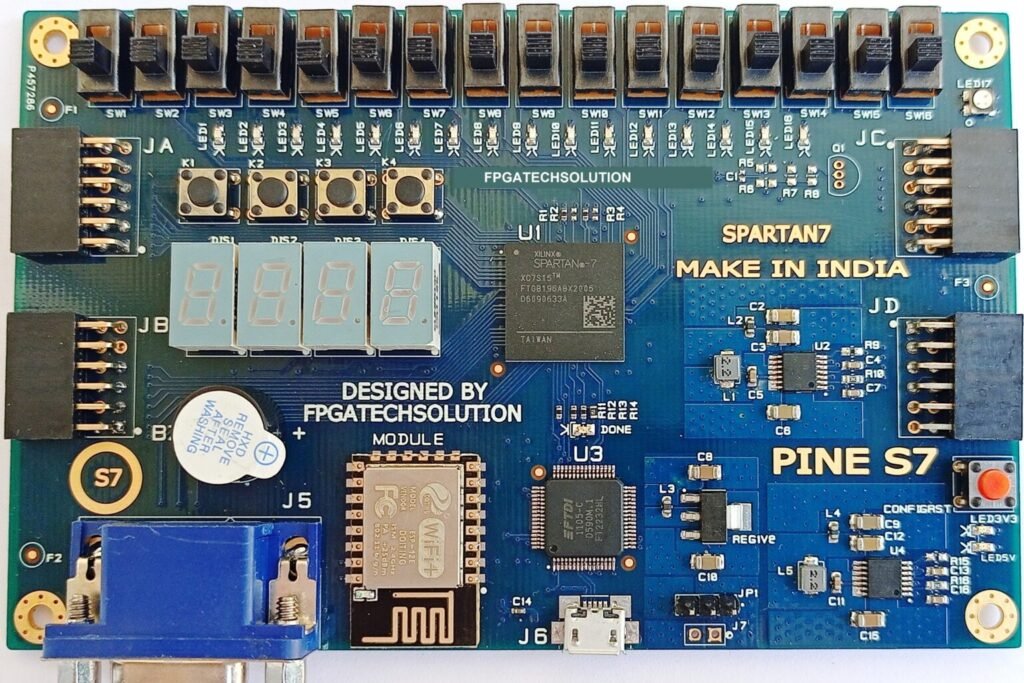

Micro-SP7

VLSI Development Board (Spartan 7)

The Micro-SP7 board is a complete ready-to-use digital circuit development platform based on the latest Spartan7 FPGA from Xilinx. With its high-capacity FPGA (XC7S15FTGB196-1), low overall cost and collection of various ports the Micro-SP7 can host designs ranging from introductory combinational circuits to complex sequential circuits like embedded processors and controllers. It allows a large number designs to be completed without the need for any additional hardware and enough uncommitted FPGA I/O pins to allow designs to be expanded using Pmods or other custom boards and circuits. The Micro-SP7 board has on board USB JTAG which support Vivado & vitis.

DELIVERABLES

  • Micro-SP7 development board
  • 5V/1.5A SMPS power supply adapter
  • USB A-B cable
  • User manual
  • Source code to test Practicals

BOARD FEATURES

  • Based on Spartan-7 XC7S15FTGB196-1 FPGA
  • Internal clock speed exceeding 450MHz
  • 12800 logic cells
  • Serial Flash (16MB)
  • ESP-12E WiFi
  • Seven-segment display – 4 no’s
  • One multipurpose RGB LED
  • VGA Interface
  • User Led’s – 16 no’s
  • Push Button switches – 4 no’s
  • Digital inputs (DIP Switches) – 16 no’s
  • 4 Pmod Ports
  • Buzzer
  • On-board USB to RS-232 converter
  • Onboard USB JTAG (Support Vivado)
  • Wooden Box Enclosure
