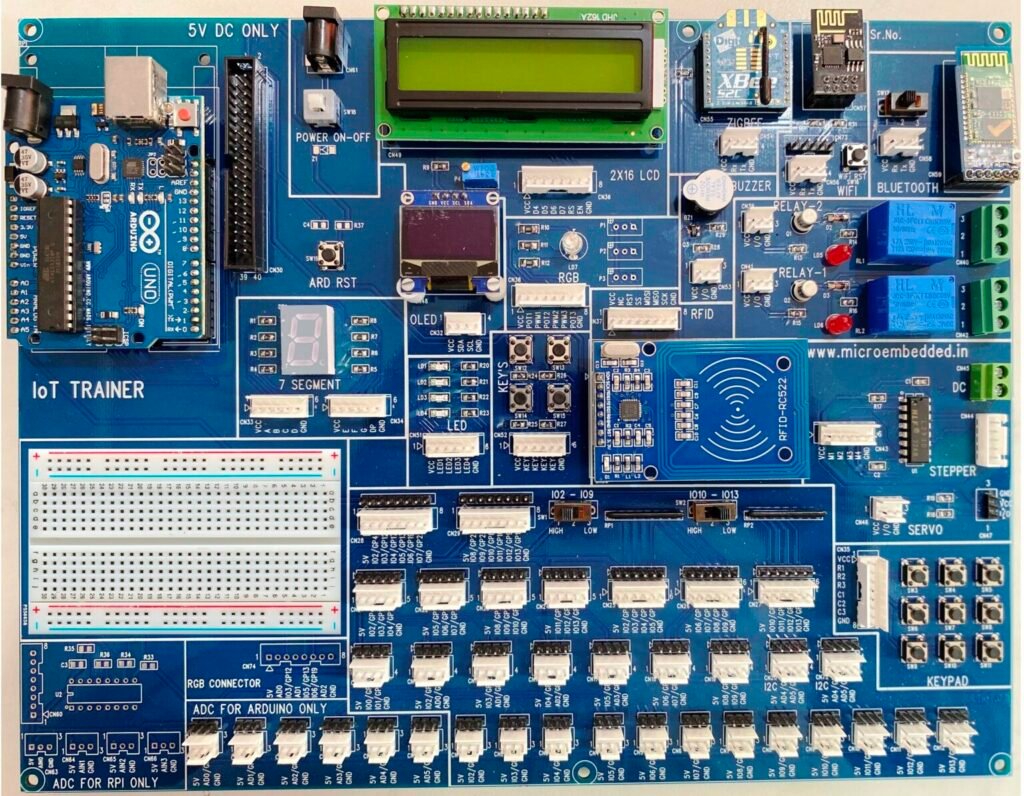

Ultimate Arduino IoT Trainer

The Ultimate Arduino IoT Trainer is Arduino (ATMEGA328) based IoT trainer board which can be used to develop IoT based applications to fulfill the need of education of Internet of Things (IoT). Getting ready for an emerging market dictates a hands on approach to the IoT. The availability of low cost development platform with tremendous community support namely Arduino makes it all the more interesting and approachable. The board is having connectors to connect various sensors. The board is also having different actuators which ca be used to develop IoT applications to fulfill the need of education of Internet of Things (IoT).

BOARD FEATURES

  • Ardunio Uno Board with

      Atmega 328 Microcontroller
      Flash Memory – 32KB
      SRAM – 2KB
      Digital I/O Pins – 13 Nos
      Analog I/P Pins – 6 Nos

  • General purpose LED’s – 4 Nos
  • General purpose Push buttons – 4 No
  • Buzzer Output
  • Relay Output – 2 Nos
  • Motor Driver Interface
  • 3×3 Keymatrix
  • RGB LED
  • Bluetooth Interface (HC05)
  • WiFi Interface (ESP01)
  • Relimate Connectors (Interfacing external sensors)

     3 Pin – 12 Nos
     4 Pin – 7 Nos
     5 Pin – 4 Nos
     6 Pin – 3 Nos
     8 Pin – 2 Nos

  •  Wooden Box Enclosure
  • 2×16 character LCD / OLED Display (0.96”)
  • RFID

SENSORS FOR IoT APPLICATIONS (01 Set)

  • LM35 Analog Temperature Sensor
  • DS18B20 Digital Temperature Sensor
  • DHT11 Temperature & Humidity Sensorr
  • BMP180 Pressure Sensor
  • HC SR-04 Ultrasonic Sensor
  • Gas Sensor (Smoke)
  • Soil Moisture Sensor
  • PIR Sensor
  • Proximity Sensor (IR)
  • LDR

DELIVERABLES

  • Ultimate Arduino IoT Trainer board
  • 5V Power Supply
  • USB Cable
  • Servo/Stepper Motor
  • User Manual/CD
