Microcontroller Lab

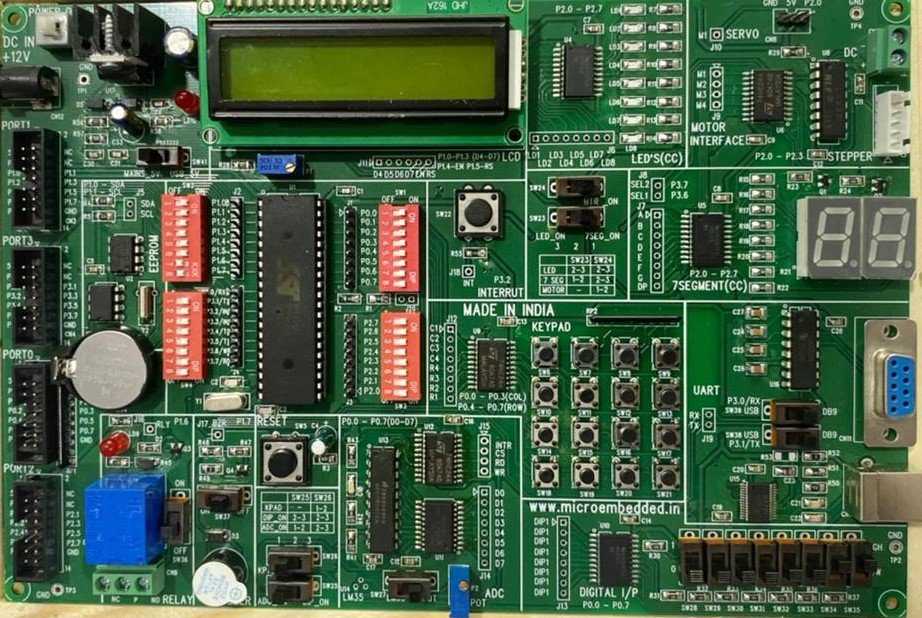

Micro8051-PRO

89x51RD2 Development Board

The Micro51-PRO development board is specially designed for the 89x51RD2 series of microcontrollers. The early beginners can use this board for fully understanding the microcontroller architecture and its programming fundamentals. Interfacing for most popular devices has been integrated on the board to help the user for one in all 8051 development kit.

BOARD FEATURES

  • On Board SST89E516RD2 microcontroller running @12 MHz
  • On Board 16×2 character LCD
  • On Board General purpose LED’s
  • (8 common cathode)
  • On Board 4×4 Matrix Keypad
  • On Board One External Interrupt
  • On Board single channel 8 bit ADC (ADC0804)
  • On Board LM35 Temperature Sensor Input
  • On Board Digital Input Switches (8 No’s)
  • On Board Motor Driver Interface (Stepper/DC/Servo)
  • On Board I2C interface EEPROM
  • On Board I2C interface RTC with Battery backup
  • On Board Relay Interface with Terminal block
  • On Board Buzzer Interface
  • On Board 7 Segment Display (2 No’s)
  • On Board 14 Pin GPIO Header
  • (4 No’s – All Port Pins available externally)
  • Fix and Flexible Peripheral Interface Option
  • (In Flexible interface any peripheral can be interfaced
  • On Board USB-Serial converter
  • (alternative DB9 Connector option)
  • Wooden Box Enclosure
  • Dual Power selection : USB or 12V SMPS

DELIVERABLES

  • Micro51-PRO Development Board
  • One USB cable
  • 12V/1.5A SMPS power supply adapter
  • User manual and CD
  • Source codes in Assembly and C

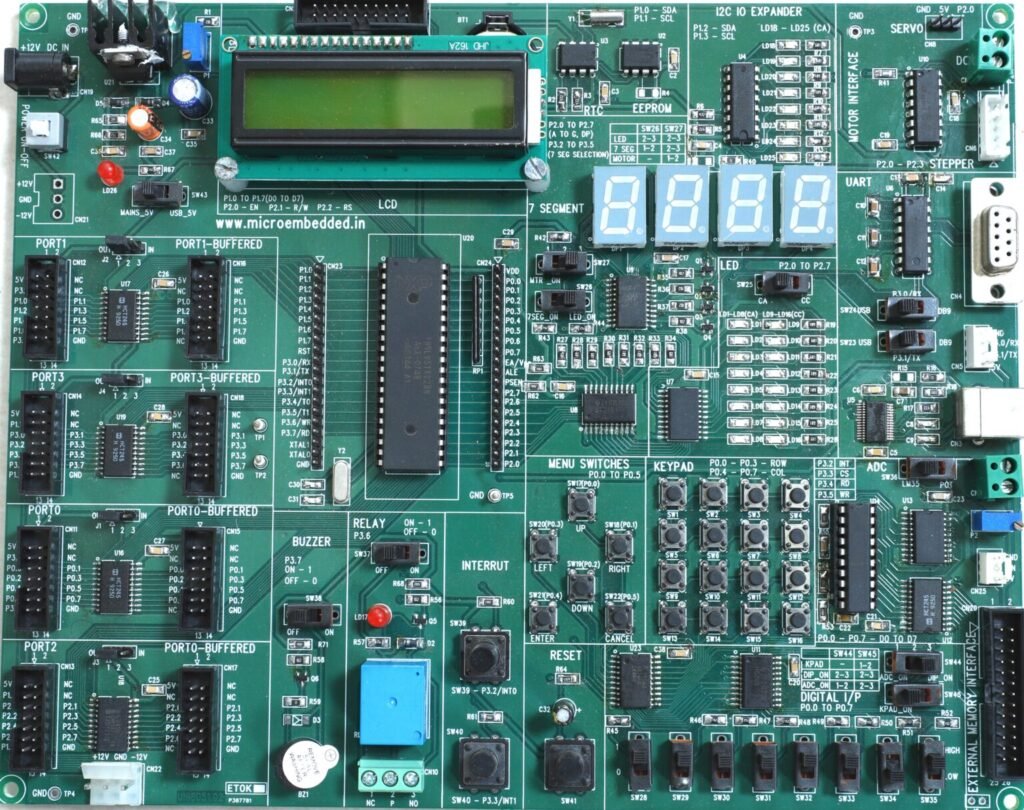

Micro8051-UNI

89x51RD2 Development Board

The Micro8051-UNI development board is specially designed for the 89x51RD2 series of microcontrollers. The early beginners can use this board for fully understanding the microcontroller architecture and its programming fundamentals. Interfacing for most popular devices has been integrated on the board to help the user for a one in all 8051 development kit.

BOARD FEATURES

  • Based on the P89v51RD2 / SST89E516RD2 microcontroller running @12 MHz
  • On Board 16×2 character LCD and optional 128×64 Graphics LCD.
  • Multiplexed QUAD 7 Segment Display.
  • General purpose LED’s (8 common anode and 8 common cathode).
  • 16 key matrix keypad arranged in 4×4 matrix.
  • 6 Menu switches.
  • 8 sliding switches for state detection.
  • On Board single channel 8 bit ADC (ADC08)
  • Stepper Motor , servo motor and DC Motor interface with L293 Driver
  • On Board I2C interface EEPROM
  • On Board I2C interface EEPROM
  • On Board DS1307 I2C interface RTC with Battery backup
  • On Board I2C I/O expander with LEDs.
  • UART with on board USB-Serial converter for PC Connectivity, DB9 Connector and 4 pin connector for external interface.
  • Relay with terminal connector
  • Tactile Switch for generating external interrupt event (INT0 and INT1).
  • Ports P0, P1, P2 and P3 buffered and un-buffered brought out on external connectors.
  • Reset switch and Power Switch.
  • External memory interface connector.
  • All interfaces buffered for extra protection.
  • Wooden Box Enclosure
  • Code can be developed in any IDE (Keil, IAR etc)
  • Dual Power selection : USB or 5V SMPS

DELIVERABLES

  • Micro8051-UNI development board
  • 12V/1.5A SMPS power supply adapter
  • USB A-B cable
  • User manual and related documentation
  • Source codes in Assembly and C
  • SST Flash Download Utility

ADD-ON MODULES

  • DAC card based on DAC08
  • Traffic Light Controller
  • Elevator Control
  • GSM/GPS Module
  • WiFi Module
  • Bluetooth Module

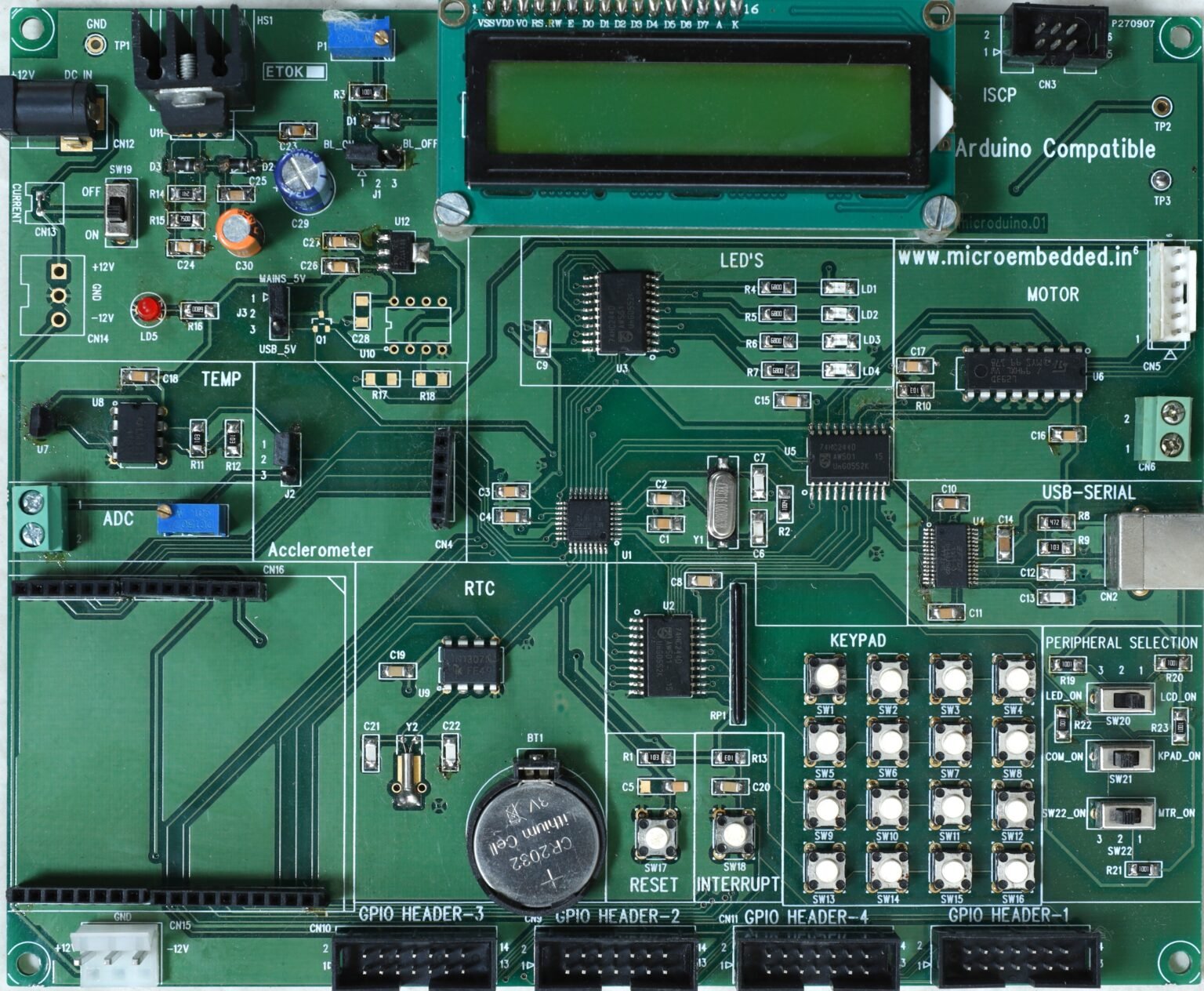

MicroATmega328

Development Board For AVR

Arduino is an open source prototyping platform based on easy to use hardware and software. It is primarily designed as a tool for easy prototyping, to make hardware and its software easily understood without electronics and programming knowledge, thus making learning embedded easy.
Keeping this in mind we are introducing the MIcroATmega328 board which is compatible with the Arduino platform. It is primarily designed to help students and faculty to easily get started with understanding the embedded technology and using it to build applications.

ACCELEROMTER SENSOR(Micro-ADXL335)

The Micro-ADXL335 is a small, thin, low power, complete 3-axis accelerometer with signal conditioned voltage outputs compatible to ATmega328. It can measure the static acceleration of gravity in tilt-sensing applications, as well as dynamic acceleration resulting from motion, shock or vibration.

LOAD CELL SENSOR (Micro-HX711)

The Load Cell Amplifier Micro-HX711 is a module that easily read load cells to measure weight. By connecting it to microcontroller (ATmega328) you will be able to read the changes in the resistance of the load cell, and you’ll be able to get very accurate weight measurements.

BOARD FEATURES

Atmega328P development board with accelerometer Sensor and DC Motor
  • ATmega328 Microcontroller based on 8 bit
  • On chip RAM – 2048 bytes
  • On chip FLASH – 32KB
  • On chip EEPROM – 1KB
  • On board I2C RTC (Optional)
  • On board Four General purpose
  • On board 4×4 Matrix Keypad
  • One USB To Serial Port
  • On board Stepper/DC Motor Interface with driver
  • On board One External Interrupt
  • On board One ADC (Trimpot)
  • On board Temperature Sensor
  • On board Provision for Accelerometer Sensor
  • On board Character LCD Display (2×16)
  • On board 14 Pin GPIO Header – 4
  • On board One ICSP Header
  • Arduino Compatible Header
  • Reset Push Button
  • 12V/1.5 A Power Supply Adapter
  • Wooden Box Enclosure

DELIVERABLES

  • MicroATmega328 development board
  • 12V/1.5A SMPS power supply adapter
  • One USB A-B cable
  • One 12V DC Motor
  • One Accelerometer Sensor
  • User manual and CD with related documentation
  • Source codes in C

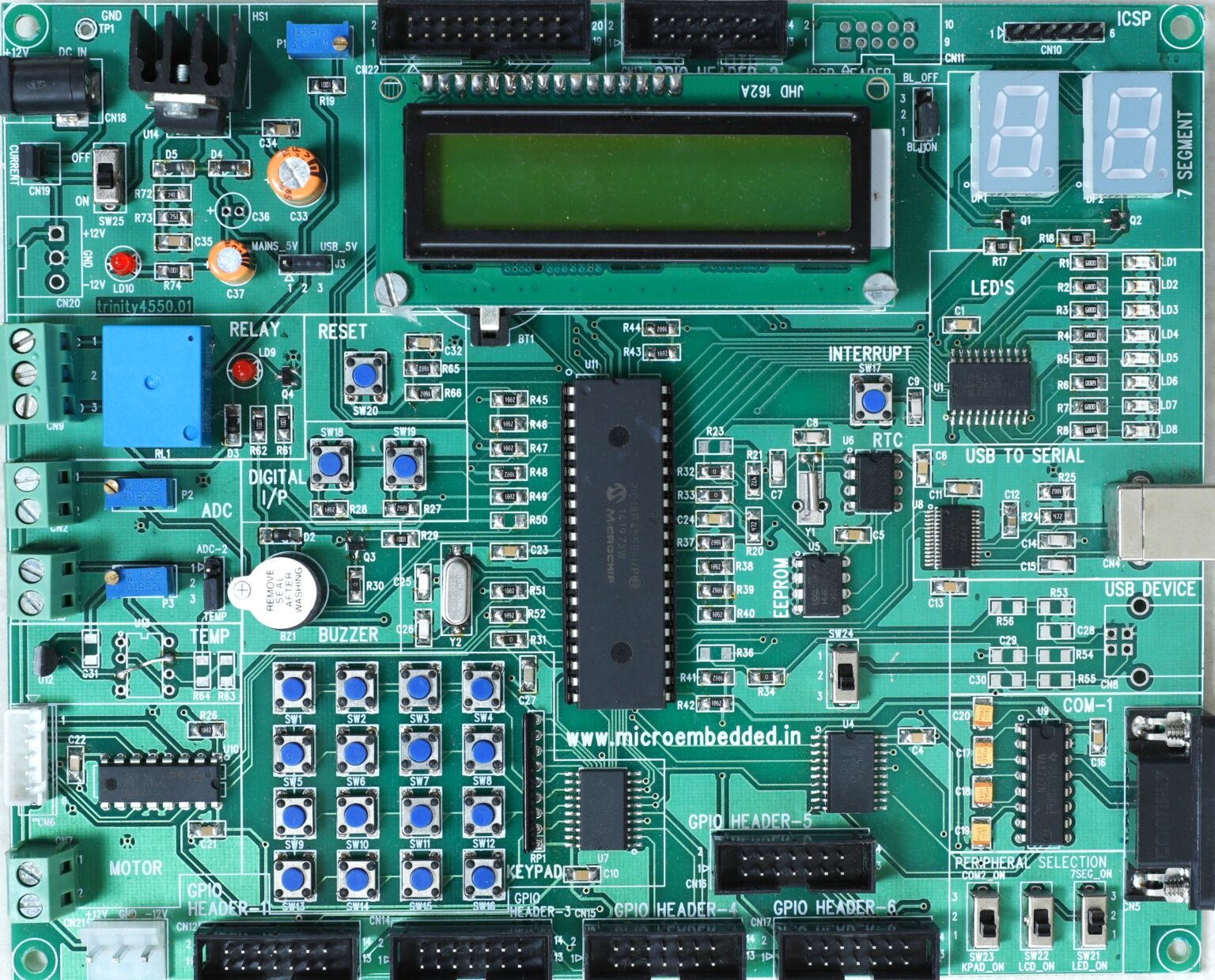

MicroPIC18F

PIC18F45xx Development Board

The MicroPIC18F development board is specially designed for the PIC18F45xx series of PIC microcontrollers. The early beginners can use this board for fully understanding the microcontroller architecture and its programming fundamentals. Interfacing for most popular devices has been integrated on the board to help the user for a one in all PIC 18F series development kit. On chip flash programming is facilitated by the on-chip boot loader reducing the burden of purchasing expensive flashing tools.

BOARD FEATURES

  • Based on the PIC18F45xx microcontroller running @48 MHz
  • 16×2 Character LCD
  • Two 7 Segment Display
  • Eight general purpose LED’s
  • 4×4 matrix keypad.
  • Stepper Motor and DC Motor interface with L293 Driver
  • On Board I2C interface EEPROM
  • On Board I2C interface RTC
  • UART with on board USB-Serial converter for PC Connectivity
  • UART with RS232 converter (DB9 Connector)
  • Relay output with terminal connector
  • Tactile Switch for generating external interrupt event.
  • Two on chip ADC Channels interfaced to adjustable voltage sources
  • Temperature Sensor LM35
  • Buzzer output.
  • Two push buttons for digital Input
  • 20 Pin FRC Header for Graphics LCD
  • Reset switch and Power Switch.
  • All Port Pins available on FRC Header
  • 6 Pin ICSP Header
  • Dual Power selection : USB or 5V SMPS
  • Wooden Box Enclosure

DELIVERABLES

  • MicroPIC18F development board
  • 12V/1.5A SMPS power supply adapter
  • USB A-B cable
  • User manual and related documentation
  • Source codes in Assembly and C
  • Boot loader based on-chip flash programming software utility

ADD-ON MODULES

  • SPI EEPROM Card based on AT25C512
  • DAC Card based on DAC08
  • ADC Card based on ADC0800
  • I2C based ADC /DAC Card
  • Traffic light Controller Card
  • Elevator Controller Card
  • 128×64 Graphical LCD
  • GSM/GPS Module
  • WiFI/BT Module
